DYLEN: Diachronic Dynamics of Lexical Networks

#Introduction

DYLEN is the acronym of the Diachronic Dynamics of Lexical Networks (Baumann et al. 2019). It is an interactive visualisation tool (Yim et al. 2022) that the Diachronic Dynamics of Lexical Networks project team created to provide insights into the dynamic lexical changes of Austrian German during the 21st century. It helps lexicographers and linguists to analyse the development of Austrian German lexemes over the course of time. It is an open source tool that can be used free of charge.

#Learning Outcomes

After completing this resource, learners will be able to:

• understand the purpose of DYLEN

• be able to read a visualisation that was created in DYLEN

• know how to undertake an ego network analysis with DYLEN

• generate a general network analysis

#Diachronic Dynamics of Lexical Networks

DYLEN enables lexical network research on large-scale authentic language data that are taken from two Austrian German corpora, the Austria Media Corpus (amc), (Ransmayr et al. 2017) and Corpus of Austrian Parliamentary Records (ParlAT).

DYLEN provides three options:

• Ego network,

• General network (party),

• General network (speaker),

and 2 additional components:

• Node metrics comparison,

• Time series analysis.

The following comic provides a visual summary of this article and illustrates the key features of the DYLEN tool.

#Networks

Diachronic networks derive from the texts in amc and ParlAT with the help of word embeddings. In NLP, word embeddings are representations of words.

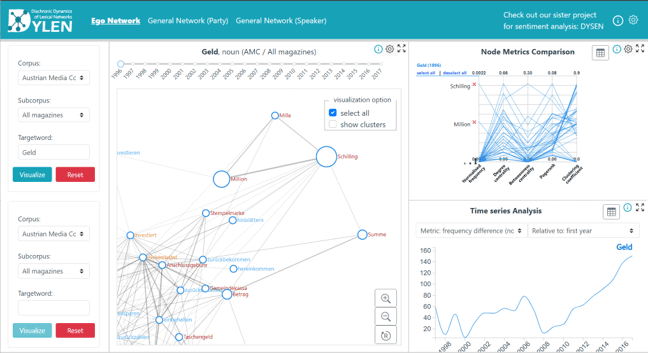

The user interface is very intuitive but every search starts with deciding on either an ego network or a general network (party or speaker). In each network type, you can analyse various parameters of a single entity or compare two entities. The first step on your diachronic network journey is to select the network that you would like to generate.

#Ego Network

Connected words are semantic neighbours that share some aspects of the target word. Some can even substitute the target word in a particular context. The ego network visualises the 50 most closely related semantic neighbours of a target word. Note that it does not show the target word itself because it would render the visualisation impossible to read. The semantic neighbours are classified as parts of speech (POS), e.g. noun, proper nouns and verbs.

#Instructions:

On the input field on the left side bar, you can

1. select a corpus (i.e., amc or PARLAT),

2. select a subcorpus (e.g., a specific newspaper),

3. type a target word (e.g., ‘Geld’),

4. and finally click Visualise.

#Understanding the Visualisation

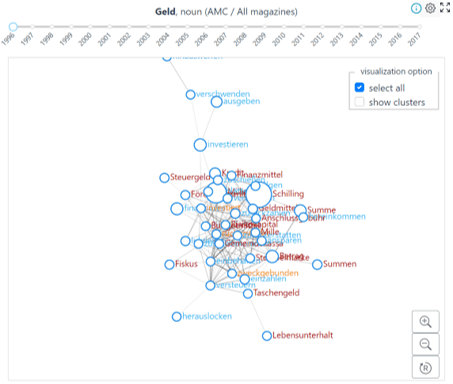

Once you clicked on visualise, DYLEN will generate your network. Let us stick with our “Geld” (money) example.

Above, you see the semantic neighbours represented by nodes that can be dragged further apart to get a better overview. Their size indicates their frequency. The bigger the node, the more commonly it is used in the corpus. You can click on each node to highlight the connections. The colours represent different parts of speech and you can change them to your preference.

#Time Series Analysis

The Time Series Analysis allows to compare two words over time; the comparison can be relative to the first year, last year or previous year.

#Metrics and Node Metric Comparison

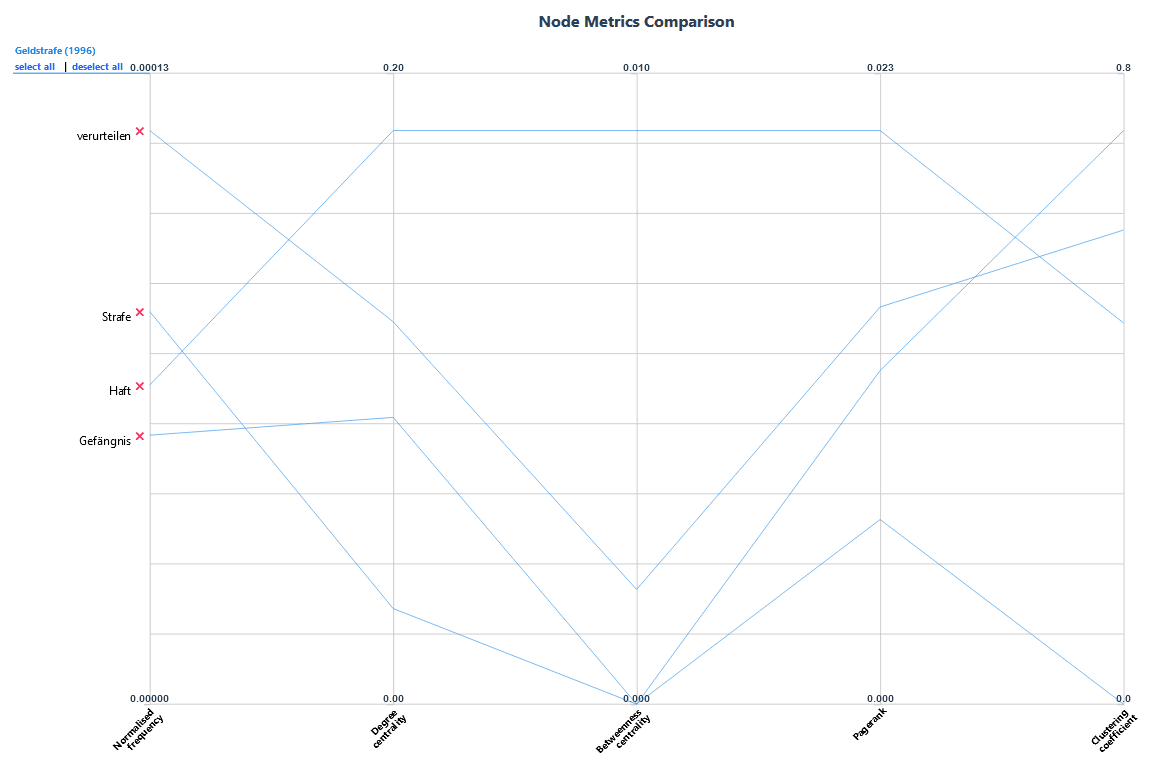

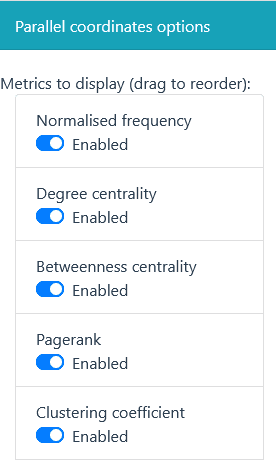

In addition, you can select the metrics for the parallel coordinates with the sliders. These metrics are presented in the parallel coordinates plot. Every graph line represents one word and each vertical axis stands for the value in the respective metric. You can visualise all words or selected words in the node metrics comparison. When you click the lines, you can inspect the values for each metric.

#General Networks

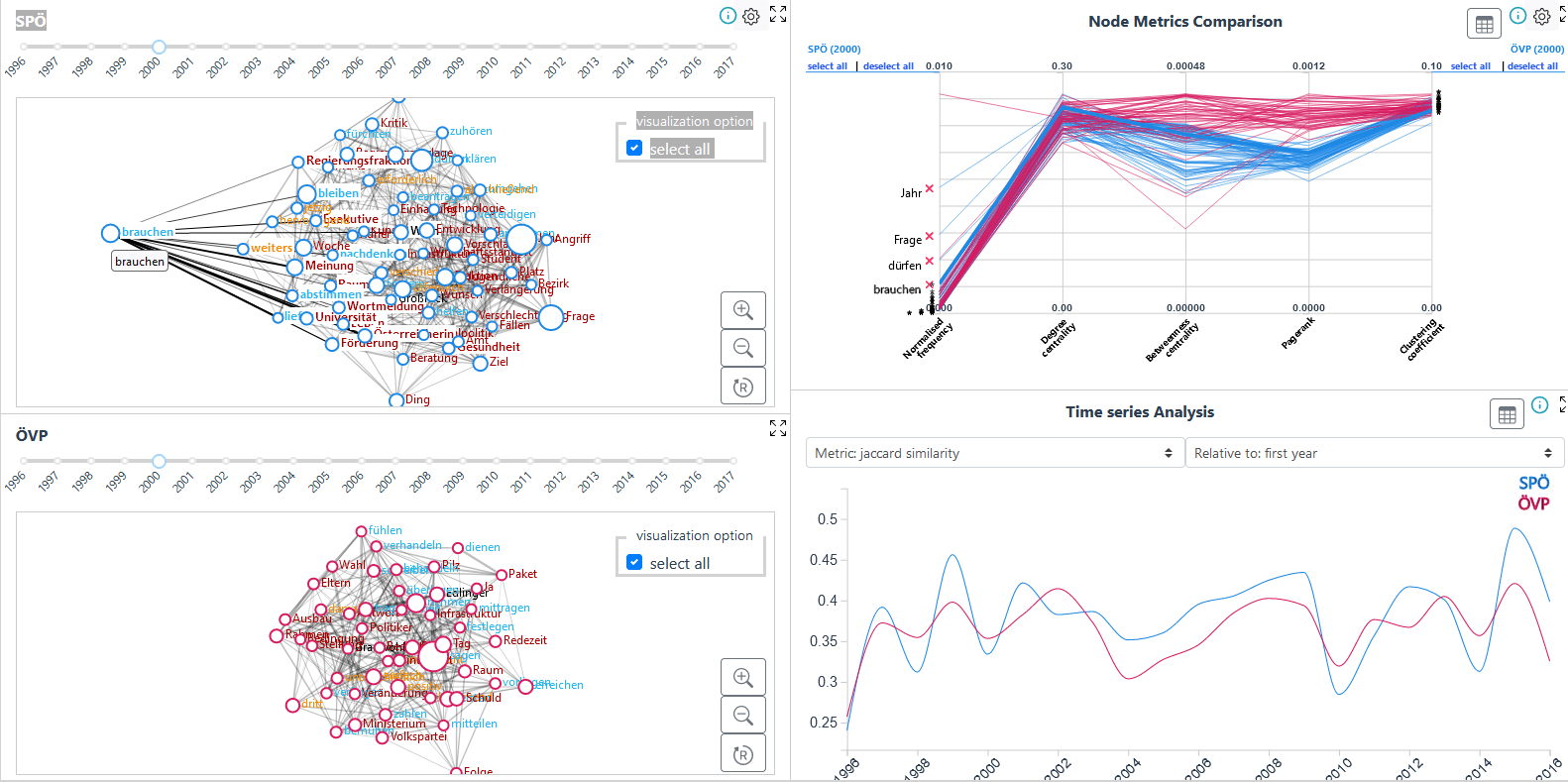

General networks reflect the speeches of a particular politician or a political party. Those networks are larger than ego networks and require more filters that make the visualisation more legible. Under general networks you can explore frequent lexemes used by particular political parties (general network (party)) or individual politicians (general network (speaker)) in the Austrian Parliament.

#Instructions:

On the input field on the left side bar, you can

1. select a party,

2. select a speaker (only for general network (speaker)),

3. (optional, but recommended) use the Node filter to

   • select a metric (e.g. degree centrality)

   • adjust the percentage of nodes to be displayed,

4. and finally click Visualise.

#Node Metrics Comparison

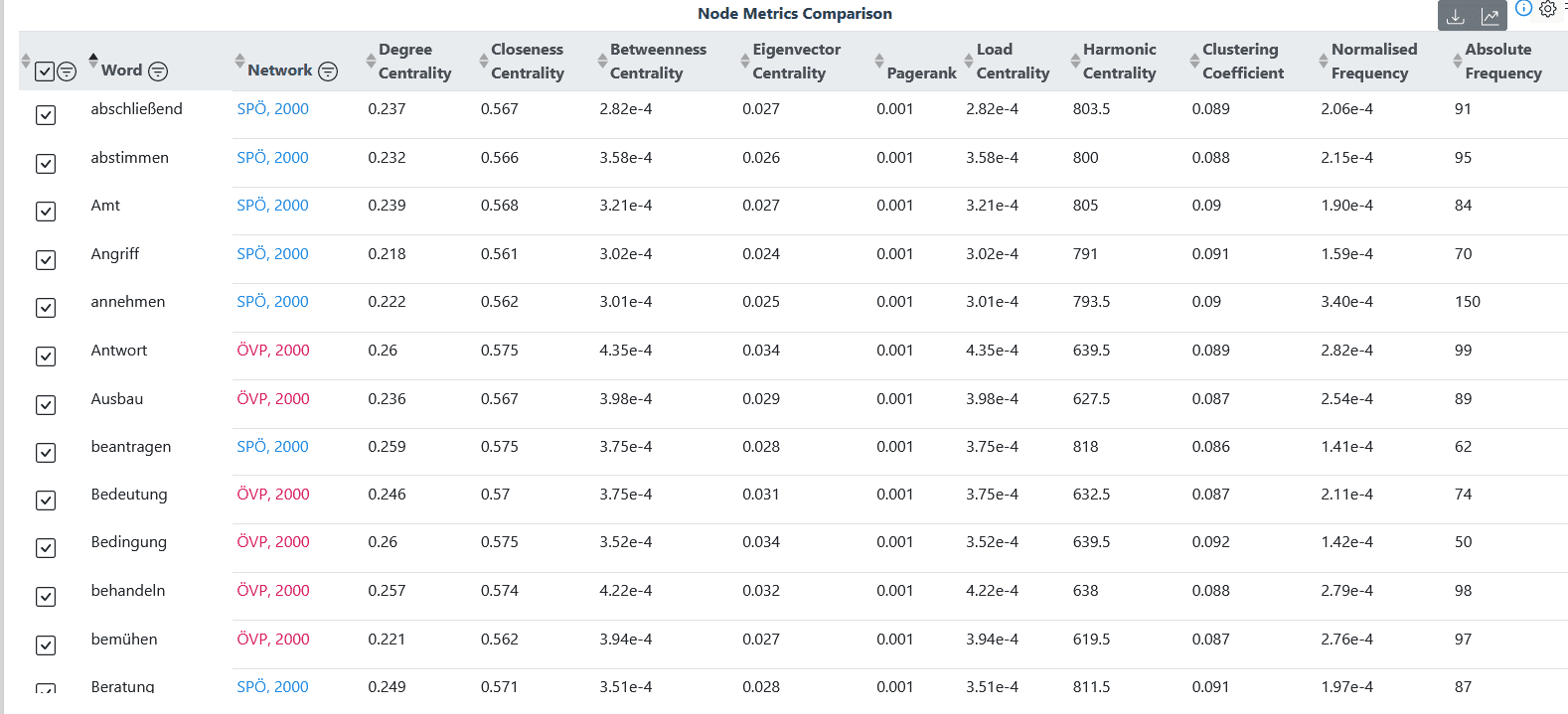

The general network analysis allows for node metric comparison too. You can choose between the same metrics as in the ego network. When you compare two parties or speakers, each component gets a different colour. Also, you can ask DYLEN to return a table for the node metrics with indicating colours (see below).

#Time Series Analysis

In the general network analysis, the development of speakers or parties can be traced, like the ego network traces individual words. You can visualise your results as a graph on a timeline, or as a table with selected metrics and values. All your options for analysis are explained in more detail on the DYLEN website in the technical details in the Time Series Analysis tab.

#Knowledge Test

#Practical Understanding and Exercises

Please use our DYLEN tool integration or open the tool in a new tab to complete the following tasks. If you are on a mobile device, use the hamburger menu in the top right corner to open the Dylen tool’s navigation bar including links to “Ego Network” etc.

Display fullscreen

#Conclusion

DYLEN represents a significant advancement in the analysis of dynamic lexical changes in Austrian German throughout the 21st century and offers a sophisticated, interactive visualisation platform that supports in-depth research into the evolving dynamics of language.

By utilising data from the Austria Media Corpus (amc) and the Corpus of Austrian Parliamentary Records (ParlAT), DYLEN provides valuable insights into how Austrian German lexemes have developed over time. Its open-source nature and user-friendly interface make it an accessible tool for lexicographers and linguists, facilitating both ego network and general network analyses.

The tool’s features, including node metrics comparison and time series analysis, allow researchers to explore linguistic data comprehensively and track lexical trends with precision. As a result, DYLEN not only enhances our understanding of language evolution but also underscores the importance of innovative tools in advancing linguistic research. Its contribution to the field highlights the growing potential of interactive visualisations in studying diachronic language dynamics.

#Side Note

This post was originally published on 17 February 2023 by the ACDH-CH.
